Sliding Door Automatic Closer Heavy Duty From Ningbo Doortec
Doortec Commercial Automatic Heavy Duty Sliding Door HH200B LED Display Controller Supermarket 1.The controller with tra
Send your inquiryDESCRIPTION
Basic Info.
| Model NO. | HH200B |
| Special Function | Security |
| Color | Silver |
| Certification | TUV, CCC, ISO9001, RoHS, CE |
| Position | Commercial |
| Surface Finishing | Finished |
| Transport Package | Cartons |
| Trademark | Doortec |
| Origin | China |
| HS Code | 9032899099 |
Product Description

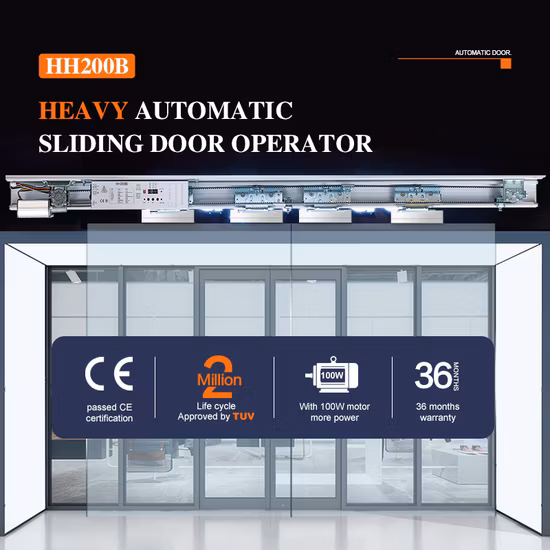

Doortec Commercial Automatic Heavy Duty Sliding Door HH200B LED Display Controller Supermarket

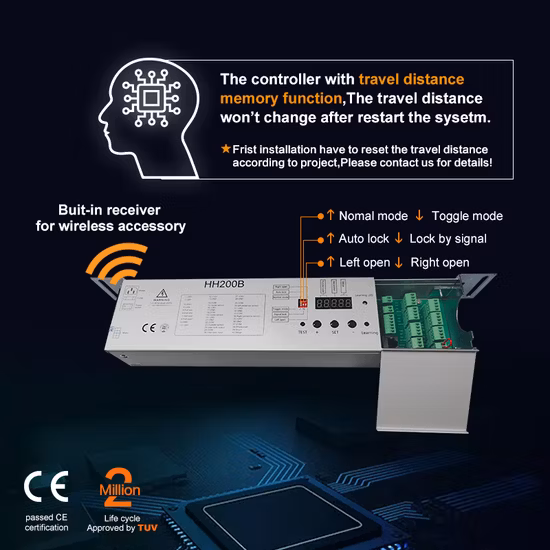

1.The controller with travel distance memory function,Memory work cycle(The first installation should be reset)
2.18 Parameters+3 DIP switches
3.Emergency stop:can be used for breakout door
4.Voltage100-240V
| Specifications | HH200B | |
| Door leaf mode | single-opening | Double-openning |
| Door leaf weight | MAX 1*200kgs | MAX180kgs |
| Door leaf width | DW=500-2000mm | DW=500-2000mm |
| Voltage | AC100-240V,50-60Hz | |
| Opening speed | 20-55cm/s(Adjustable) | |
| Closing speed | 20-55cm/s(Adjustable) | |
| Opening time | 0-60s(Adjustable) | |
| Manual open force | <94.5N | <99.1N |

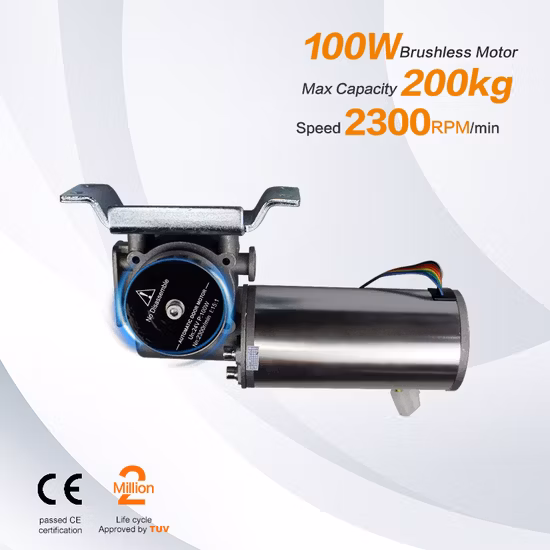

| Motor | 24V,100W 2300rpm brushless DC motor | |
| Operating temperature | -10ºC~+70ºC | |
